Commodore 64 & Amiga

C64 Hardware

The Commodore 64 launched in January 1982 at $595 and became the best-selling personal computer model of all time — an estimated 12–17 million units. Its combination of capable graphics, legendary sound, and relatively low price made it dominant through the 1980s.

CPU

MOS 6510

1 MHz. Modified 6502 with built-in 8-bit I/O port used to control memory banking, cassette, and serial bus. Little-endian byte order. 56 instructions.

RAM

64 KB

Hence "64." But only 38 KB available to BASIC programs — the rest used by the OS ROM, video chip, I/O, and color RAM. Programmers in machine code could access all 64 KB.

Graphics

MOS VIC-II (6569)

Video Interface Chip II. 320×200 hires or 160×200 multicolor. 8 hardware sprites (24×21 px each). 16 colors. Raster interrupt tricks allowed programmers to exceed official limits.

Sound

MOS SID 6581/8580

Sound Interface Device. 3 independent voices, each with oscillator + envelope generator. Ring modulation, sync, filter. Arguably the greatest sound chip ever made for a home computer.

Storage

Datasette + 1541

Datasette tape drive: cheap, slow (a game could take 10 minutes to load). 1541 floppy drive: 170 KB per disk, painfully slow via serial bus (~300 bytes/sec). Fast loaders were a cottage industry.

OS / BASIC

CBM BASIC 2.0

Microsoft-licensed BASIC in ROM. "READY." prompt on boot. 65,536 bytes of RAM, 38911 BASIC bytes free. Famously lacked built-in commands for sound and graphics — you had to POKE memory addresses directly.

Keyboard

PETSCII keyboard

66-key full-travel keyboard. Included Commodore key (modifier), RESTORE key (generates NMI), and PETSCII block graphics characters on every key — a complete character-graphics system built into the font.

Expansion

Cartridge port + User port

Cartridge port exposed the full address bus — games cartridges loaded instantly. User port had CIA 6526 lines for RS-232, parallel, and user-built hardware. Joystick ports accepted standard Atari-compatible controllers.

The SID Chip — MOS 6581/8580

Designed by Bob Yannes in 1981. The SID (Sound Interface Device) was so far ahead of contemporary home computer audio that it spawned an entire subculture of musicians and composers. SID music is still actively composed and performed today.

3 Voices

Independent Oscillators

Each of the 3 voices has its own oscillator, frequency register (16-bit = 0–4 kHz range), pulse width register, waveform selector, and ADSR envelope generator. All three can play simultaneously and independently — like a 3-piece band in a chip.

Waveforms

4 Waveform Types per Voice

Triangle (soft, flute-like), Sawtooth (bright, string-like), Variable Pulse (controllable square wave — duty cycle from thin needle to full square produces different timbres), and Noise (white noise generator for percussion and effects). Multiple waveforms could be combined.

ADSR Envelope

Attack / Decay / Sustain / Release

Each voice has a full ADSR envelope: Attack (0–8 seconds), Decay (6ms–24 seconds), Sustain (0–15 levels), Release (6ms–24 seconds). This was sophisticated synthesizer technology in 1982. Combined with waveform selection, it enabled convincing simulation of real instruments.

Filter

Multimode Analog Filter

A resonant analog filter shared across all voices. Switchable between low-pass, high-pass, and band-pass modes. Resonance control. Cutoff frequency register. The filter had slight production variations between chips (6581 vs 8580) — these imperfections became part of the "SID sound" that musicians treasured.

Ring Mod + Sync

Advanced Modulation

Ring Modulation between voices multiplied the frequencies for metallic, bell-like tones. Oscillator Sync hard-synced one voice's phase to another, producing characteristic sync-sweep sounds (the laser/scream effect iconic in C64 music). Voice 3 could also be used to modulate filter cutoff for LFO effects.

Notable Composers

The SID Hall of Fame

Rob Hubbard (Commando, Monty on the Run, Delta — technically revolutionary), Martin Galway (Ocean games, Times of Lore), Ben Daglish (The Last Ninja 2), Chris Hülsbeck (German demoscene legend, Turrican), David Whittaker (prolific UK composer). These composers are celebrated today like rock stars by the retro community.

The C64 Color Palette — 16 Colors

The VIC-II chip supported exactly 16 colors. These weren't arbitrary — they were determined by the chip's internal voltage levels. Programmers and artists learned to work within these constraints, developing characteristic color combinations that define "the C64 look."

Black

White

Red

Cyan

Purple

Green

Blue

Yellow

Orange

Brown

Lt Red

Dk Grey

Mid Grey

Lt Green

Lt Blue

Lt Grey

The default C64 screen was blue (#352879) with light blue (#6c5eb5) text — burned into millions of memories. The default border color was also light blue, giving the iconic "blue frame" look.

Legendary C64 Games

The Last Ninja

System 3, 1987

Isometric action game with stunning graphics and an iconic soundtrack by Ben Daglish. Six levels across feudal Japan. One of the best-reviewed C64 games ever. Two sequels followed. Attempted ports to other platforms never matched the C64 version.

Paradroid

Hewson / Andrew Braybrook, 1985

Andrew Braybrook's masterpiece. Robot takeover — you're a tiny droid reprogramming enemy robots via circuit transfer minigames. Procedurally generated galaxy map. Tied for #1 game in Zzap!64's all-time chart. A landmark in game design.

Impossible Mission

Epyx, 1984

Search 32 rooms for puzzle pieces while avoiding robots. Famous for digitized speech: "Another visitor. Stay a while. Stay forever!" — groundbreaking in 1984. Classic time-pressure gameplay. Nearly impossible to actually complete.

Boulder Dash

First Star Software, 1984

Mine for diamonds while boulders and enemies pursue. 16 caves with enemies, butterfly creatures, amoeba. Spawned dozens of clones and sequels. One of the most imitated games in microcomputer history.

Elite

Acornsoft / Firebird, 1985

Space trading and combat with wireframe 3D graphics. 8 galaxies, 256 planets each. Trading commodities, bounty hunting, piracy. The original open-world space game. Traded on cassette pirated copies kept it alive. Took a year to reach Elite rank.

Turrican

Rainbow Arts / Manfred Trenz, 1990

Manfred Trenz's run-and-gun masterpiece with Chris Hülsbeck's legendary music. Massive open levels, power-up wheel system, gyro weapon. Technical marvel — the C64 pushed to its absolute limits. Launched a beloved franchise.

Mayhem in Monsterland

Apex, 1993

Released in 1993 — after the platform was supposedly dead — and shocked everyone with its speed and color. Smooth 50fps scrolling in full color defied what people believed the VIC-II could do. Proof that great programmers could always find more in the hardware.

Maniac Mansion

LucasArts, 1987

The game that invented the point-and-click adventure genre. SCUMM engine (Script Creation Utility for Maniac Mansion) debuted here. Multiple playable characters, multiple endings, deliberate humor. Every LucasArts adventure for the next decade used SCUMM.

The Demoscene

The demoscene emerged from the cracking scene — pirates who removed copy protection added "crack intros" to show off. These evolved into standalone artistic and technical demonstrations ("demos"). C64 demo groups competed to achieve the impossible from a 1 MHz CPU and 64 KB RAM. UNESCO recognized demoscene as cultural heritage in 2020.

Krestage 3

Crest + Oxyron, 2004

A modern demo that remains a benchmark for C64 technical achievement. Full-screen rotating 3D objects, real-time raytracing effects, and SID music — all on stock 1982 hardware. Demonstrates that the C64 demoscene never died.

Comaland

Censor Design + Oxyron, 2015

Winner of multiple demo competitions. Smooth full-screen 3D animations with no slowdown. Exploiting every raster trick, sprite multiplexing technique, and undocumented CPU opcode. A love letter to C64 hardware 33 years after launch.

Edge of Disgrace

Booze Design, 2008

Widely cited as one of the best C64 demos ever made. Smooth full-screen graphics, perfect SID soundtrack, technical effects never seen before on C64. Created fresh buzz in a community that had been making demos for 25 years.

Raster Tricks

Various, 1984–present

The fundamental C64 technique: changing VIC-II registers mid-frame by timing code to exact raster line positions. This allowed hundreds of sprite multiplexing, split-screen effects, more than 16 colors simultaneously, and smooth parallax scrolling — all "impossible" by the chip's official spec.

FLD / FLI Effects

C64 hackers, 1985–present

FLD (Flexible Line Distance) and FLI (Flexible Line Interpretation) are raster tricks that manipulate VIC-II's internal state. FLI allowed 16 colors per 8×1 pixel block instead of the normal 8×8. FLD created smooth vertical scrolling. Both require cycle-exact timing.

The Party / The Assembly

European demo parties, 1991–present

Demo parties: weekends where thousands of coders, musicians, and artists gather to compete and release demos. The Party (Denmark) started 1991. Assembly (Finland) started 1992. Still running today, now including PC, mobile, and retro categories alongside modern platforms.

The Amiga Line

Commodore acquired Amiga Inc. in 1984. The Amiga was technically stunning — a true multimedia machine years ahead of the Mac and PC. Its custom chips (Agnus, Denise, Paula) provided hardware-accelerated graphics and sound while the Motorola 68000 CPU handled computation. "Graphics, sound, and color that the IBM world is still trying to match" — Byte Magazine, 1985.

Amiga 1000

1985 — The Original

The first Amiga. 7.16 MHz 68000, 256 KB Chip RAM (expandable to 512 KB), OCS graphics (4096-color HAM mode), 4-channel stereo sound. Launched at a live demo in New York by Andy Warhol painting Debbie Harry. Price: $1,295 + $300 monitor.

Amiga 500

1987 — The Mass Market Model

The best-selling Amiga. Same OCS chipset as A1000 but in an all-in-one case with keyboard. 512 KB Chip RAM standard. Priced at $699 — affordable. Dominated European gaming through the late 1980s and early 1990s. The Atari ST's greatest rival.

Amiga 2000

1987 — The Desktop

Desktop expansion-oriented Amiga. 5 Zorro II slots, 2 PC ISA slots, internal drive bays. Bridge cards allowed running MS-DOS. Video Toaster (1990) turned it into a professional broadcast production system — used on Babylon 5, SeaQuest, and other TV productions.

Amiga 3000

1990 — The Professional

ECS chipset (Enhanced Chip Set). 68030 CPU at 16 or 25 MHz. SCSI-2 hard drive. Flicker fixer for VGA monitor compatibility. Built-in video slot. AmigaOS 2.0 introduced a modernized Workbench GUI. Targeted professional and creative markets.

Amiga 1200

1992 — The Last Great Amiga

AGA chipset: 16.8 million colors (24-bit palette), 256 on screen. 68EC020 at 14 MHz. PCMCIA slot. 2 MB Chip RAM standard. At £399, it was a powerful machine that arrived too late — PC prices were falling fast. Commodore declared bankruptcy 18 months later.

Amiga 4000

1992 — The Flagship

68040 at 25 MHz, AGA chipset, 6 MB RAM standard. AmigaOS 3.0. The most powerful Amiga Commodore ever built. Beloved by video production professionals. When Commodore went bankrupt in 1994, it was the machine that the community mourned most.

Timeline

1977

Commodore PET 2001

Jack Tramiel's Commodore Business Machines launches the PET — an all-in-one computer with built-in monitor, cassette, and keyboard. Alongside Apple II and TRS-80, one of the "1977 Trinity." MOS Technology 6502 CPU. Lays the foundation for Commodore's home computer dominance.

1980

VIC-20 — First $300 Color Computer

The VIC-20 is the first color computer to sell for under $300. William Shatner pitches it on TV: "Why buy just a video game when you can have a real computer?" 5 KB RAM. 22-column display. Becomes the first computer to sell 1 million units.

1982

C64 Launches at CES

The Commodore 64 is announced at the January Consumer Electronics Show. Initial price: $595. Jack Tramiel's goal: "Computers for the masses, not the classes." The SID and VIC-II chips are far ahead of any competitor at the price. Sales accelerate through the year.

1983

The Price War — $200 C64

Commodore slashes the C64 price to $200, crushing Texas Instruments out of the home computer market entirely. TI writes off $330M. Atari struggles. The C64 achieves dominant market share in the US home market. Jack Tramiel leaves Commodore to buy Atari.

1985

Amiga 1000 and the Andy Warhol Demo

The Amiga 1000 is unveiled at Lincoln Center, New York. Andy Warhol uses the Amiga's Graphicraft software to digitally paint Debbie Harry on stage. The Amiga demo shows 4,096 colors, stereo sound, and multitasking — features the Mac and PC won't match for years.

1987

Amiga 500 & C64 Peak Sales

Both the Amiga 500 and C64 sell in record numbers in Europe. The C64 is the best-selling computer in the UK, Germany, and many other markets. UK "bedroom coders" are producing commercial games from their homes — a cultural phenomenon that creates companies like Psygnosis, Ocean, and Ultimate.

1990

Video Toaster — Amiga Goes Hollywood

NewTek's Video Toaster ($1,595) for the Amiga 2000 democratizes broadcast video production. Includes a 4-input live switcher, digital effects, titling, and LightWave 3D. Used professionally on Star Trek: Deep Space Nine, Babylon 5, and hundreds of TV commercials and news broadcasts.

1994

Commodore Bankruptcy

Commodore International files for bankruptcy on April 29, 1994. Years of mismanagement, failure to market the technologically superior Amiga against the IBM-compatible onslaught, and the death of the home computer market all contribute. The community is devastated. Assets sold to Escom, then Gateway 2000. The Amiga name passes through many hands.

Gallery — Commodore Hardware

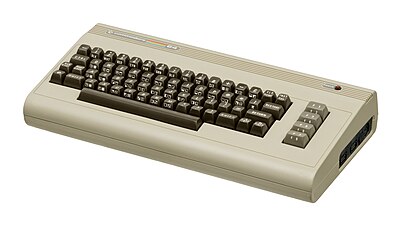

Commodore 64

The iconic Commodore 64 — the best-selling personal computer model of all time, with 12–17 million units sold between 1982 and 1994.

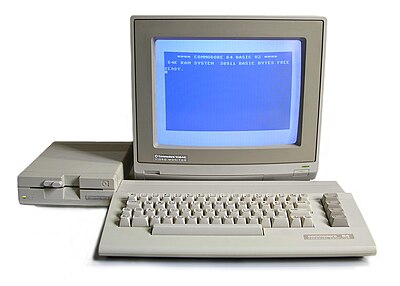

C64C System with Monitor

The revised C64C (1986) in its slimmer case, paired with a Commodore monitor — the classic home computing setup for millions of families.

Commodore PET (2001 Series)

The Commodore PET (Personal Electronic Transactor), introduced in 1977 — the computer that put Commodore on the map and launched the home PC era.

Jack Tramiel (1928–2012)

Commodore's founder and driving force, whose philosophy — "computers for the masses, not the classes" — made the C64 accessible to millions worldwide.

Amiga 1000 (1985)

The original Amiga — unveiled at Lincoln Center with Andy Warhol painting Debbie Harry live. Its 4096-color display and stereo sound were years ahead of any competitor.

Amiga 500 (1987)

The best-selling Amiga model — an affordable all-in-one design that dominated European gaming through the late 1980s and early 1990s.

Commodore VIC-20 (1980)

The VIC-20 — the world's first color computer priced under $300, endorsed by William Shatner and the first computer sold in K-Mart stores.

C64 Game Cartridges

Commodore 64 cartridges loaded instantly via the expansion port — no waiting for tape or slow 1541 disk loads. Games like Epyx sports titles shipped on cart.
